3d materials

for activities

EDUTINKER

Bilbao, may 29

This project is co-funded by the Erasmus+ Programme of the European Union, no: 2015‐1‐ES01‐KA201‐016001

Interzonas

About

Team focused on exploring and generating ideas, experiments and making them real

Creative Technologies | Trends | Learnings | Maker lovers

The Team

misstohit

Aitor

Miren

Karlos

Iker

our mission

Design and prototype

3D materials for the MissToHit activities

The process: understand, design, print, improve, print ...

tools

free software, free culture

1. All the material has to be free

2. The software has to be free

3. The result has to be free

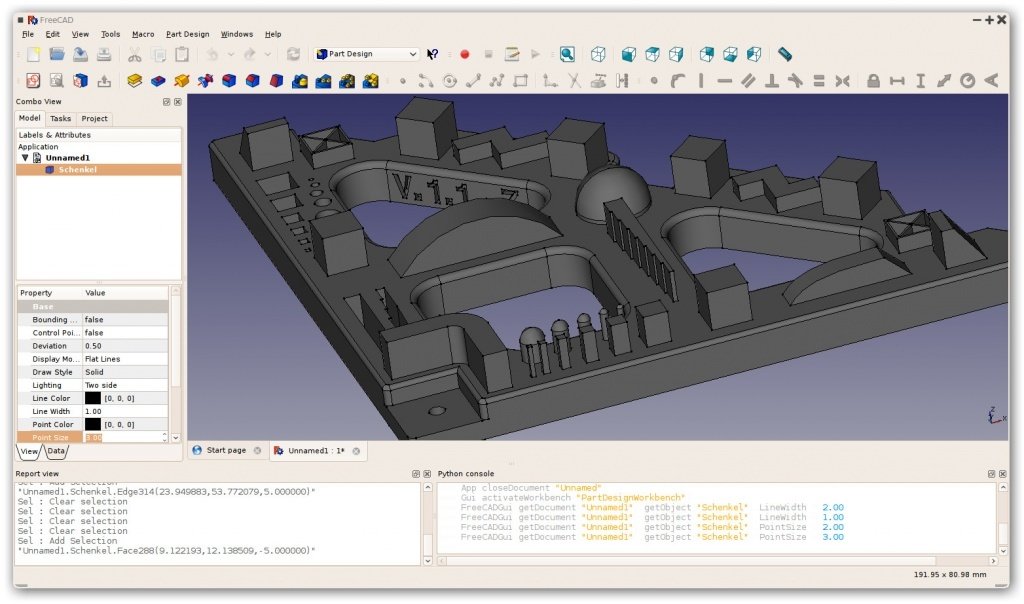

Freecad

FreeCAD is a general purpose parametric

3D CAD modeler

www.freecadweb.org

Software Libre | Documentation | Community

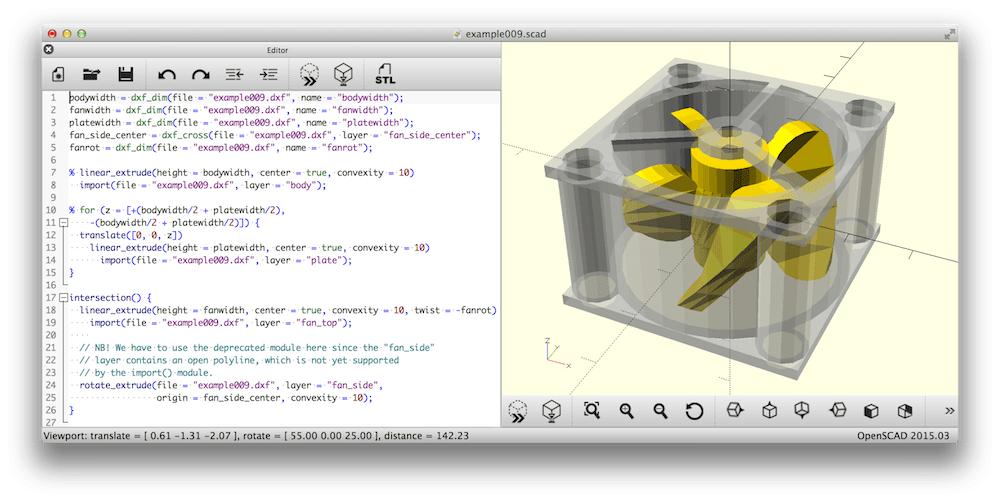

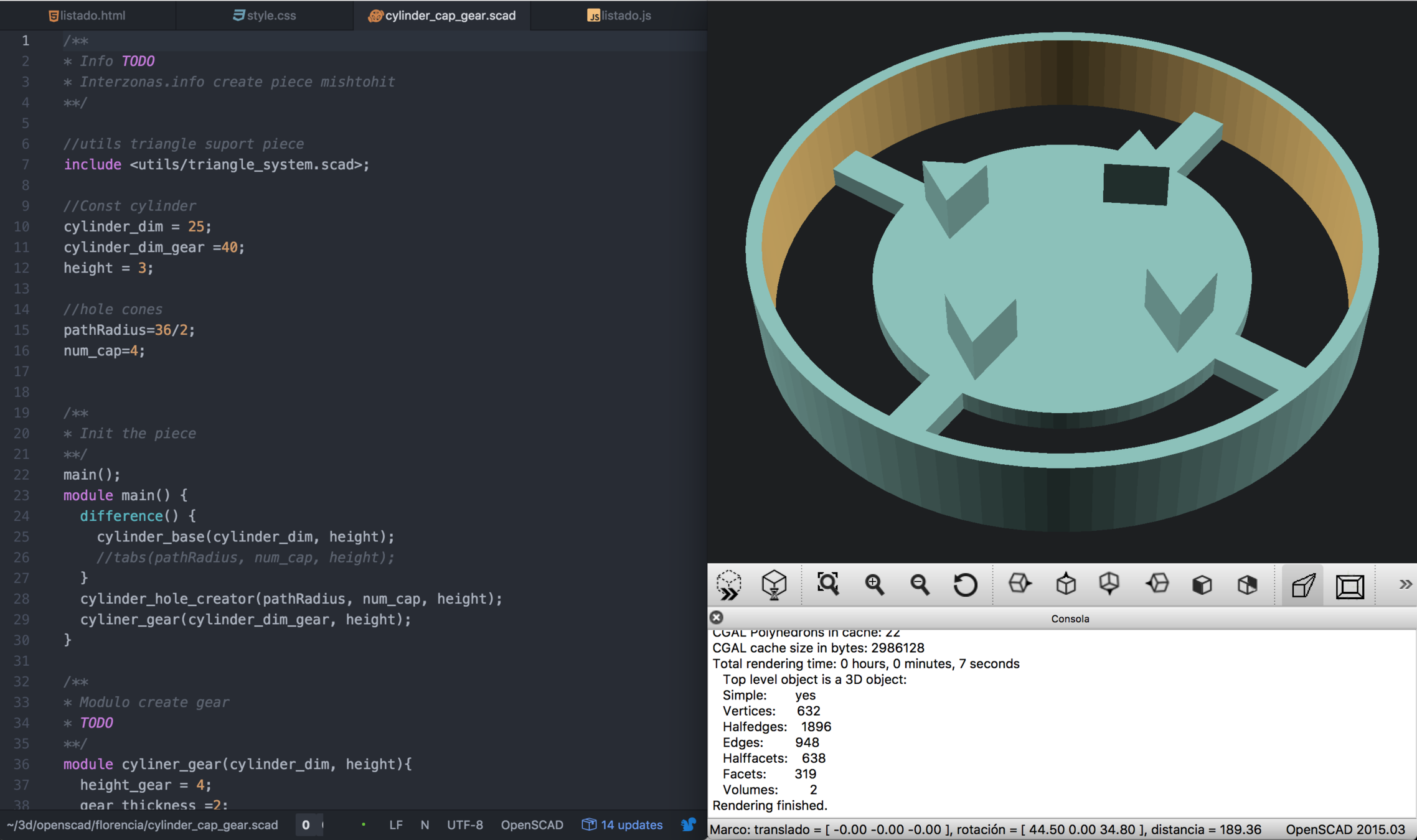

openscad

OpenSCAD is a software for creating solid

3D CAD models

www.openscad.org

OpenSCAD is not an interactive modeller. Instead it is something like a 3D-compiler that reads in a script file that describes the object and renders the 3D model from this script file. This gives you (the designer) full control over the modelling process and enables you to easily change any step in the modelling process or make designs that are defined by configurable parameters.

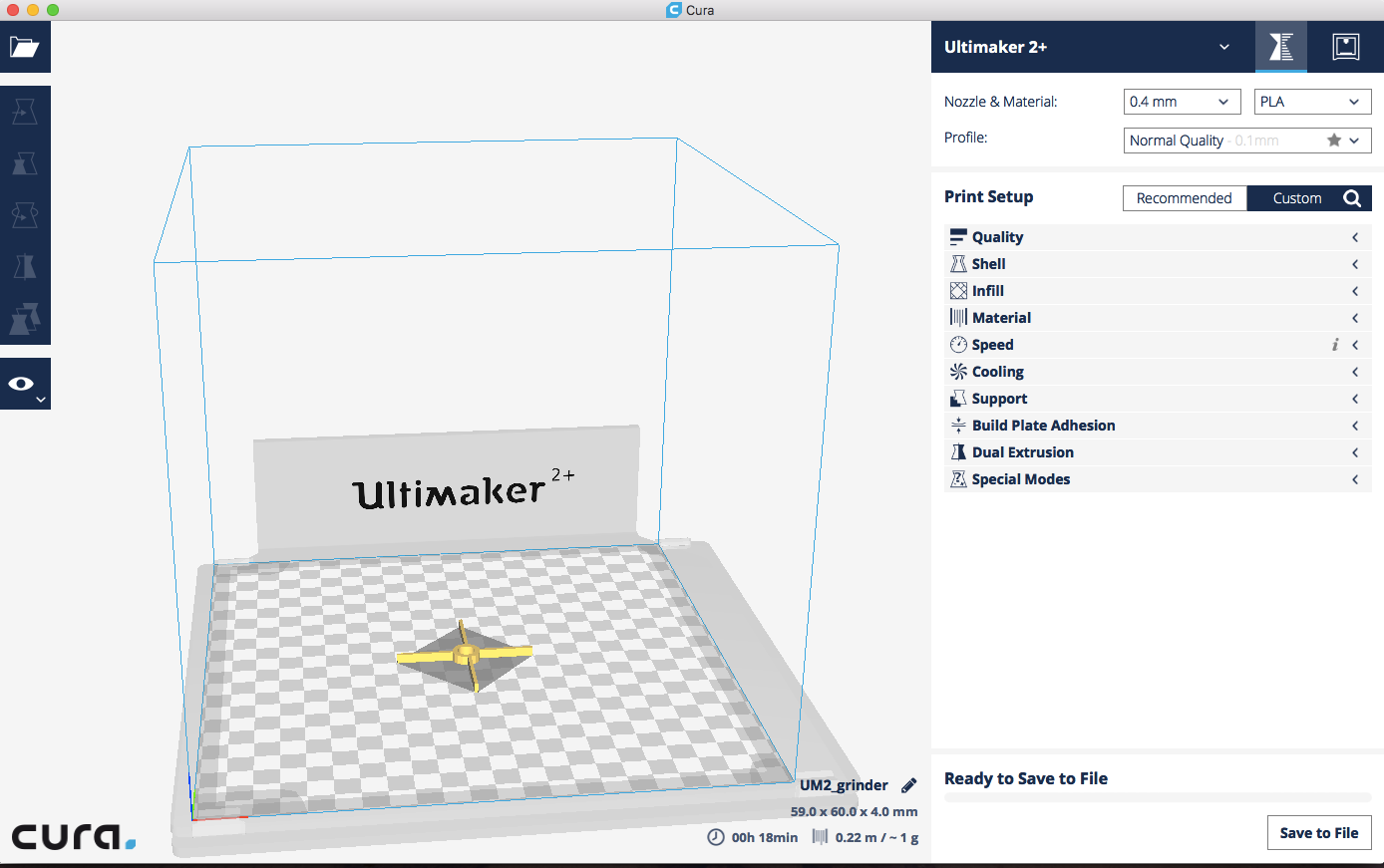

cura stl

Cura prepares model for 3D printing

https://ultimaker.com/en/products/cura-software

• Easy to get great results.
• It’s open source
• Community helps

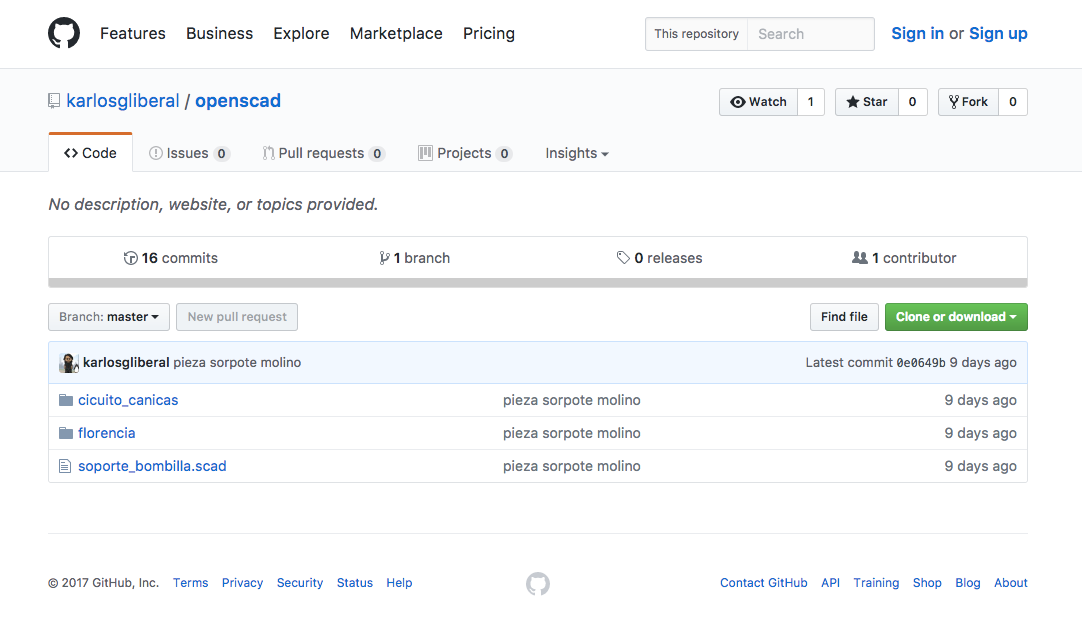

Github repository

GitHub is a web-based Git or version control repository and Internet hosting service

3D MATERIALS

Electric current

ACTIVITY

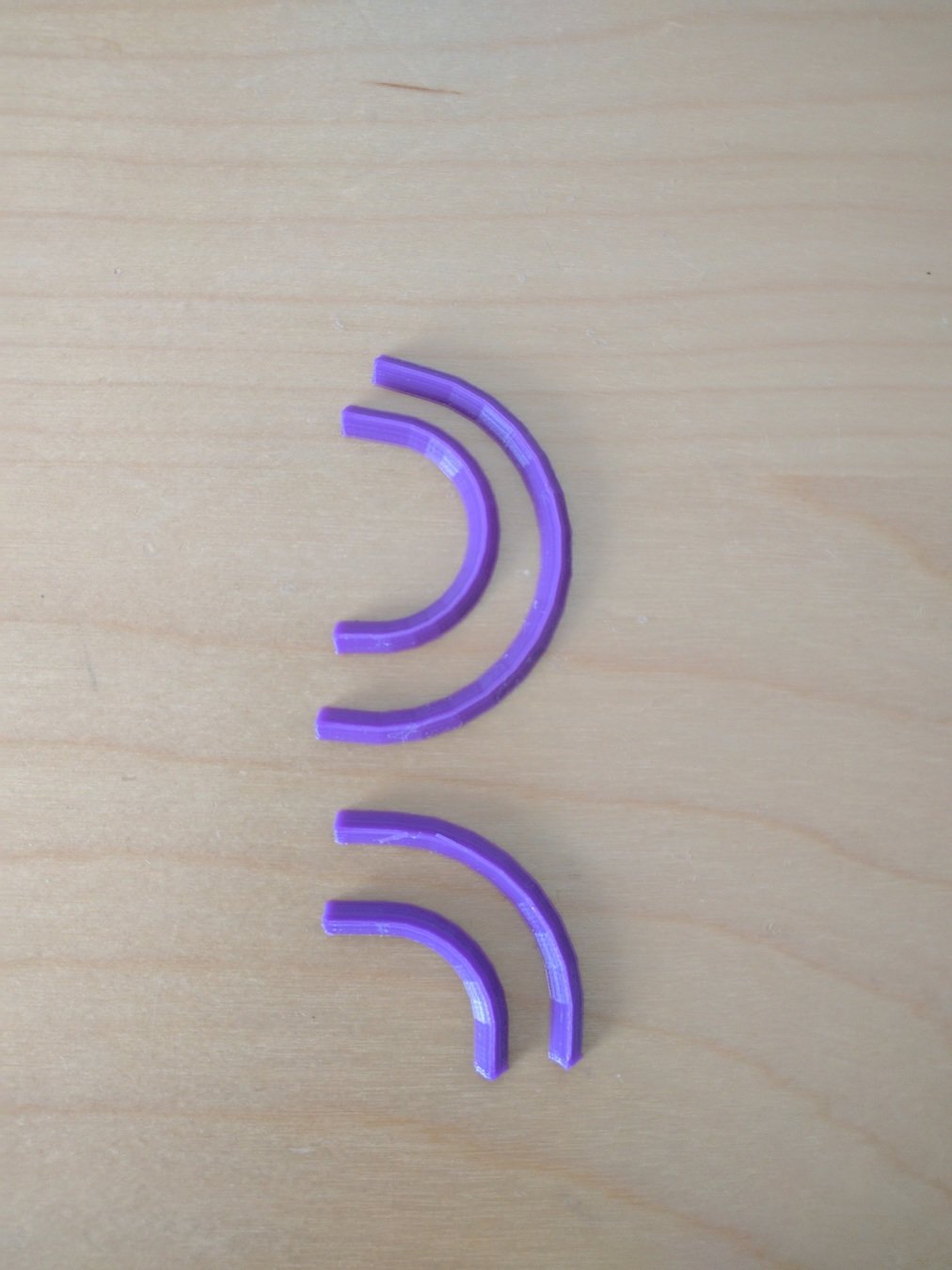

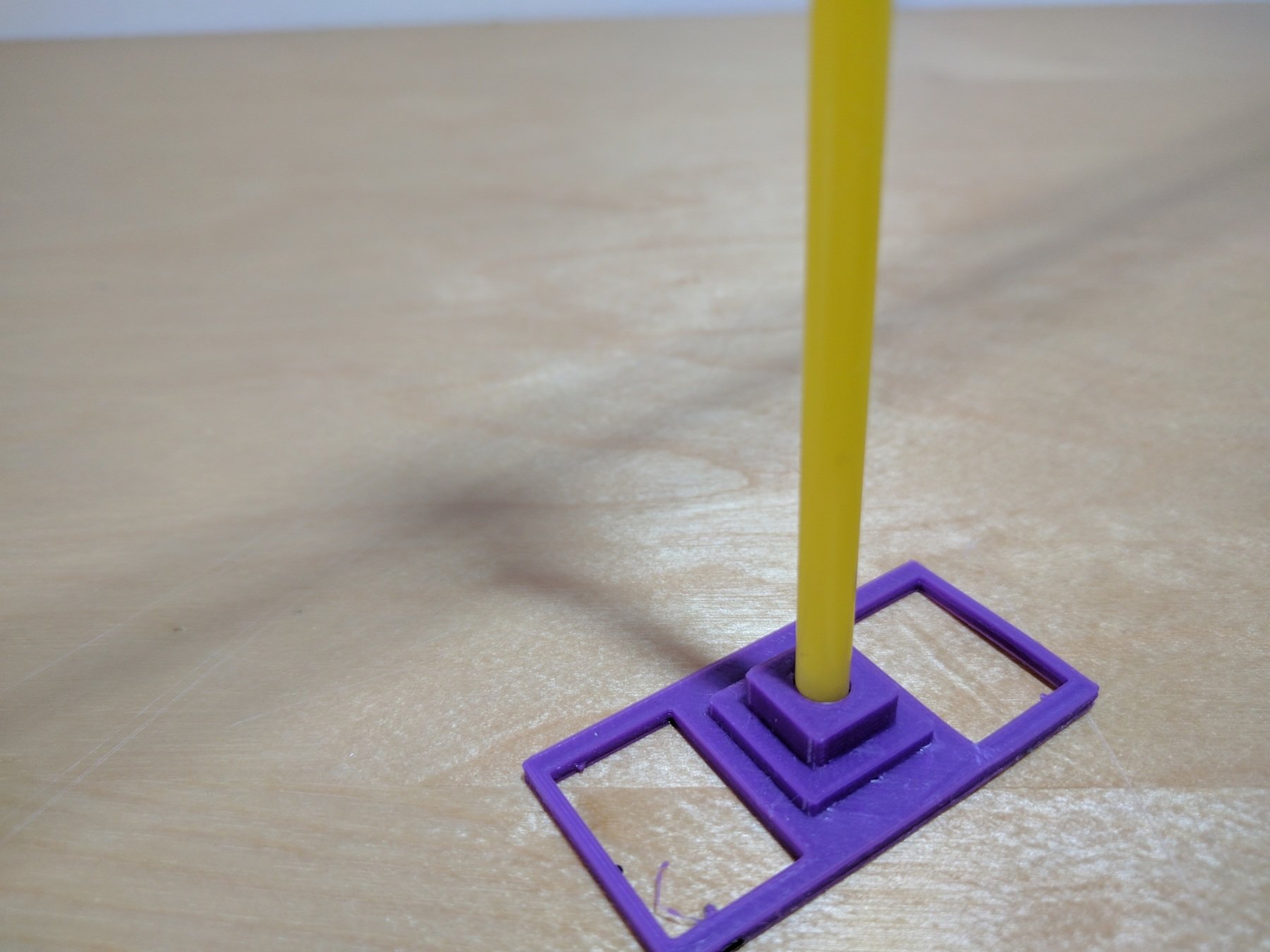

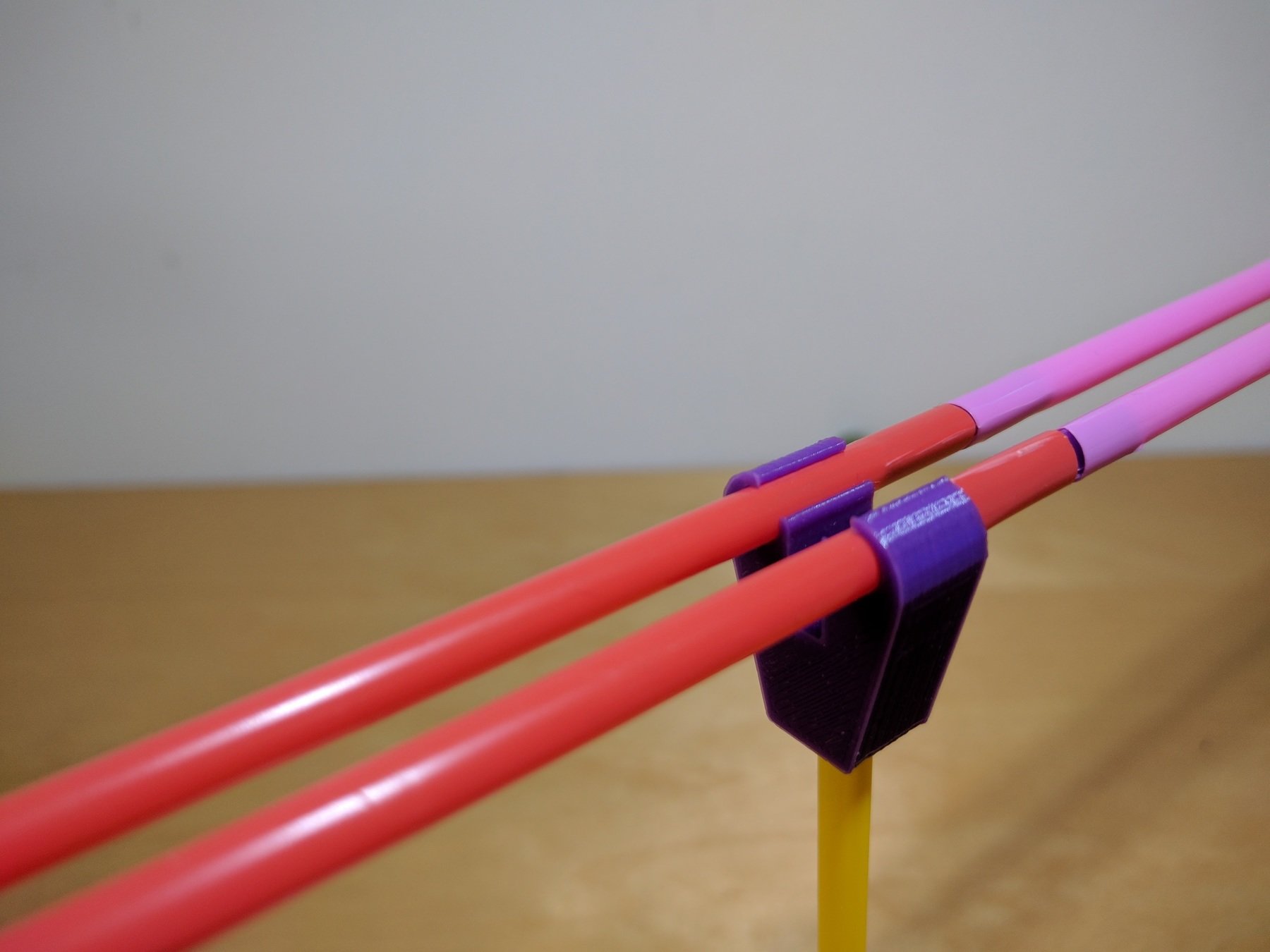

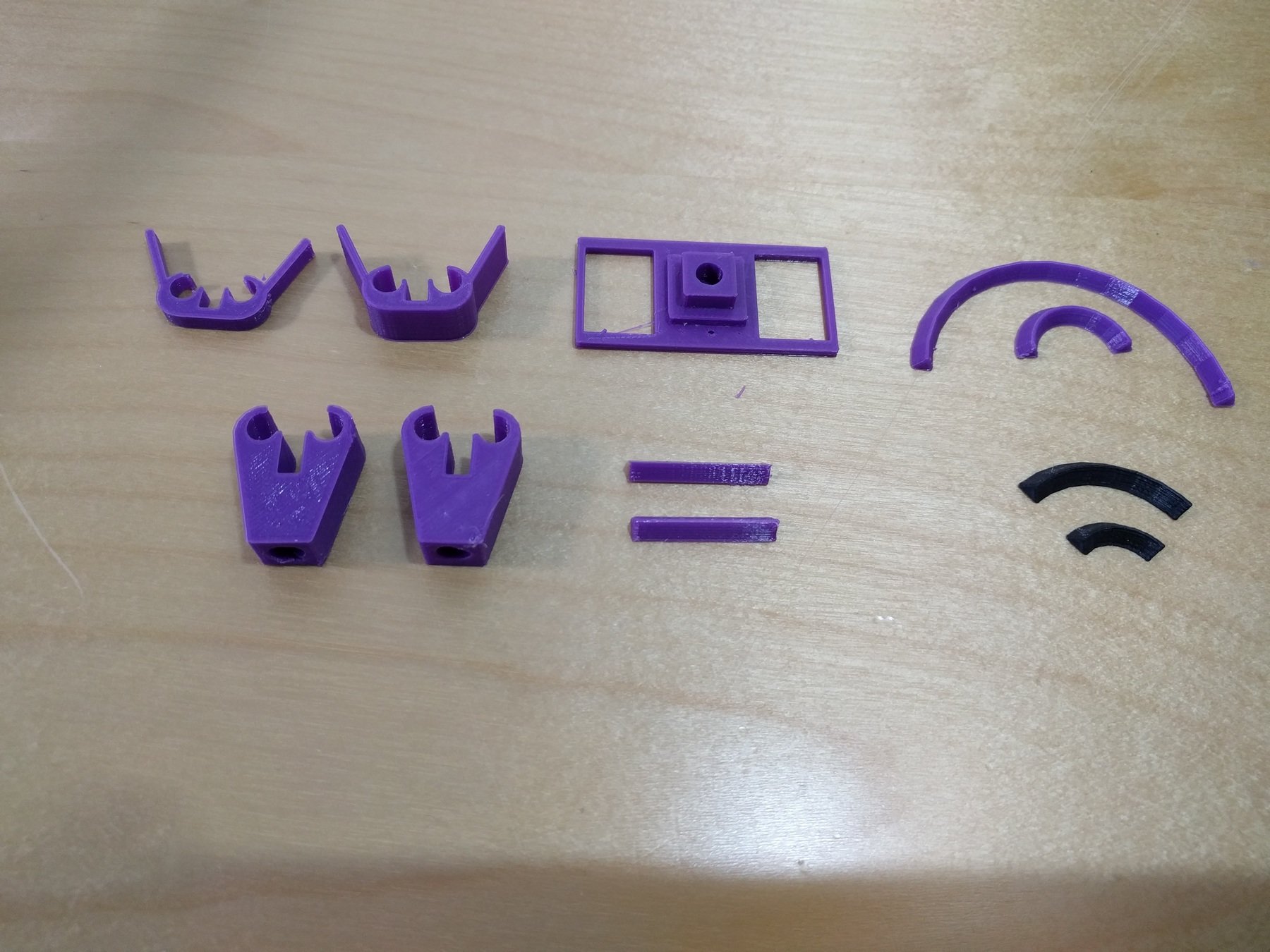

MATERIAL: 3D printed paths and mills

Falling, rolling, sliding

ACTIVITY

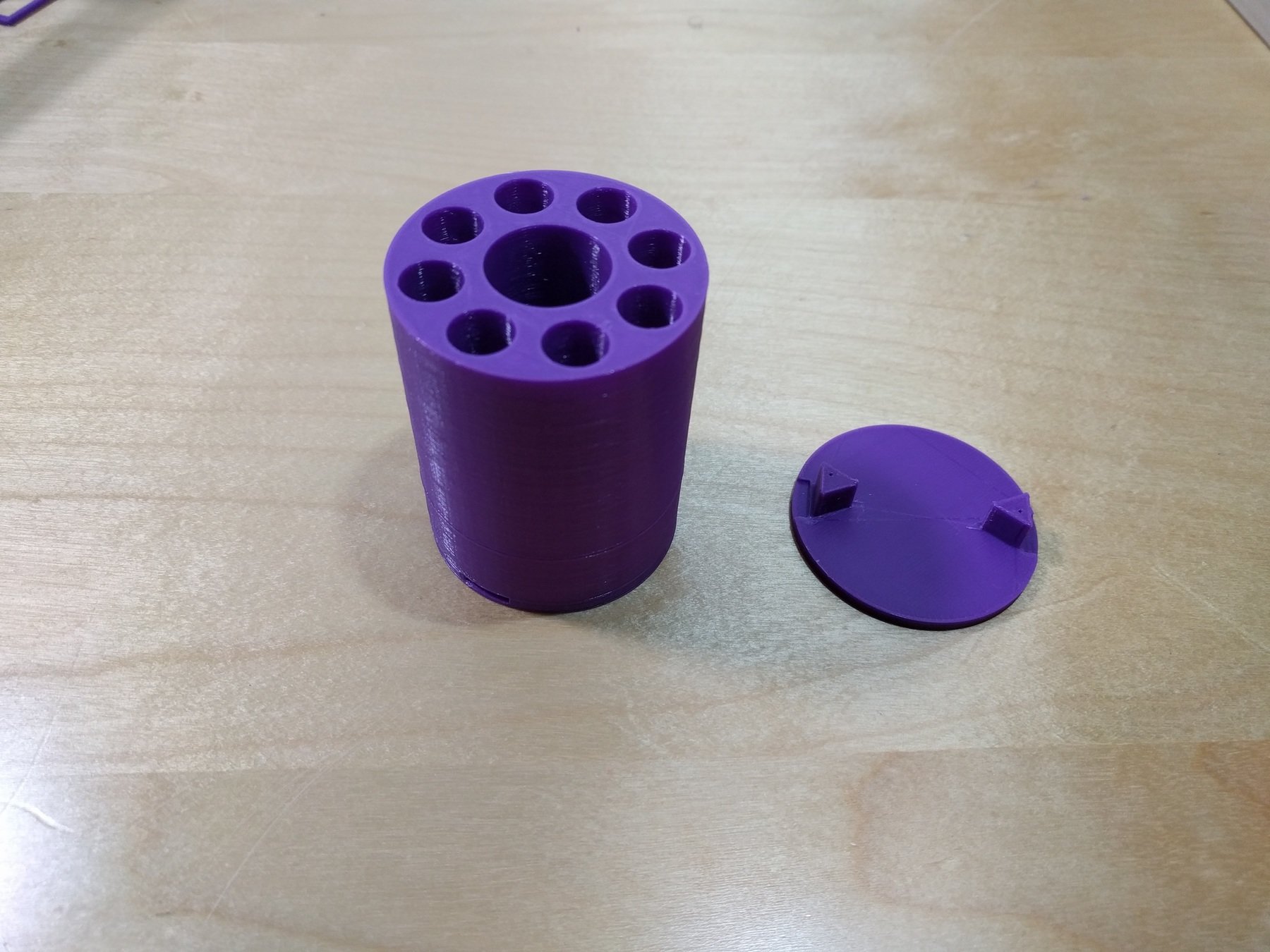

MATERIAL: cylinder

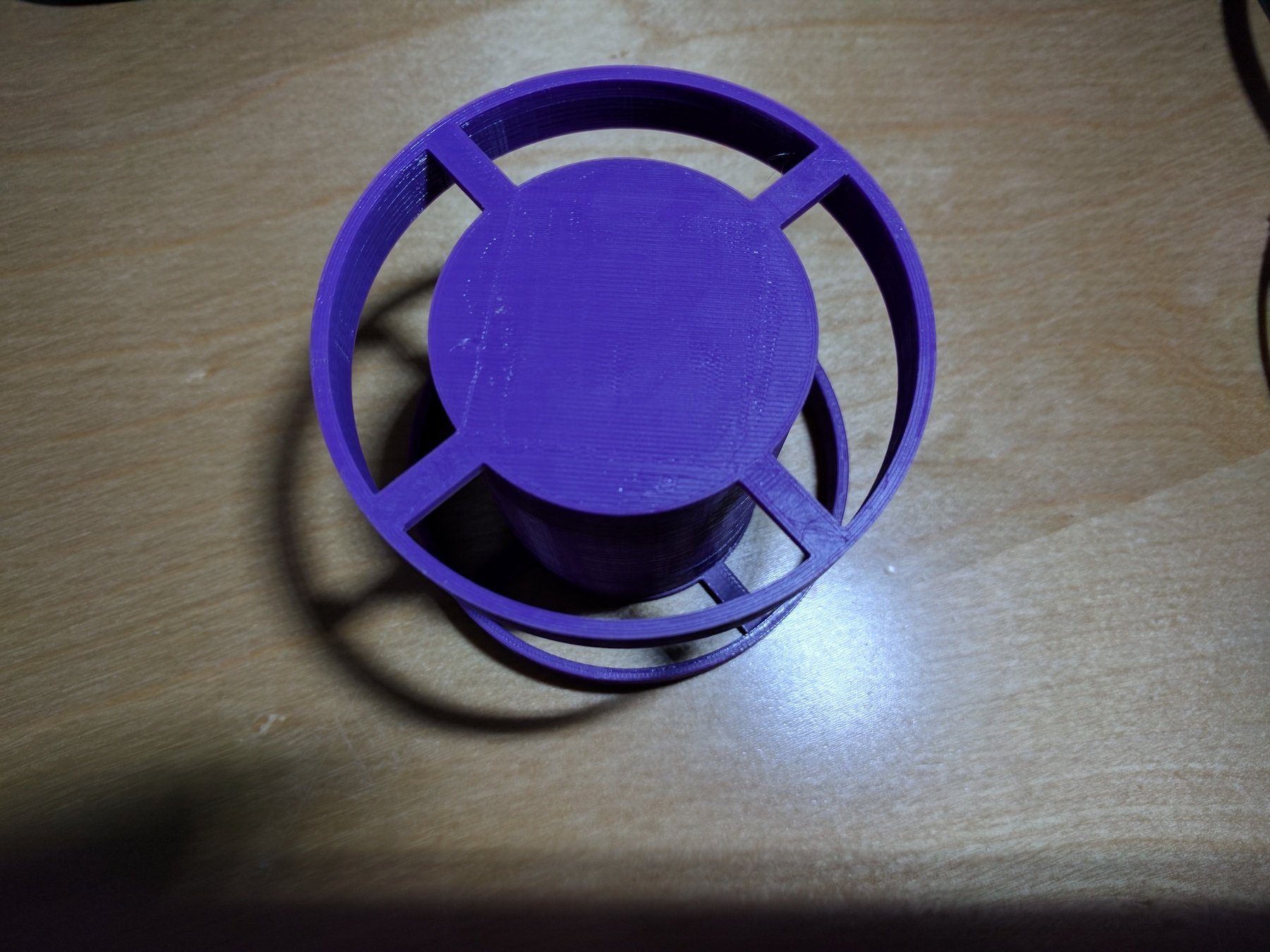

H-forces

ACTIVITY

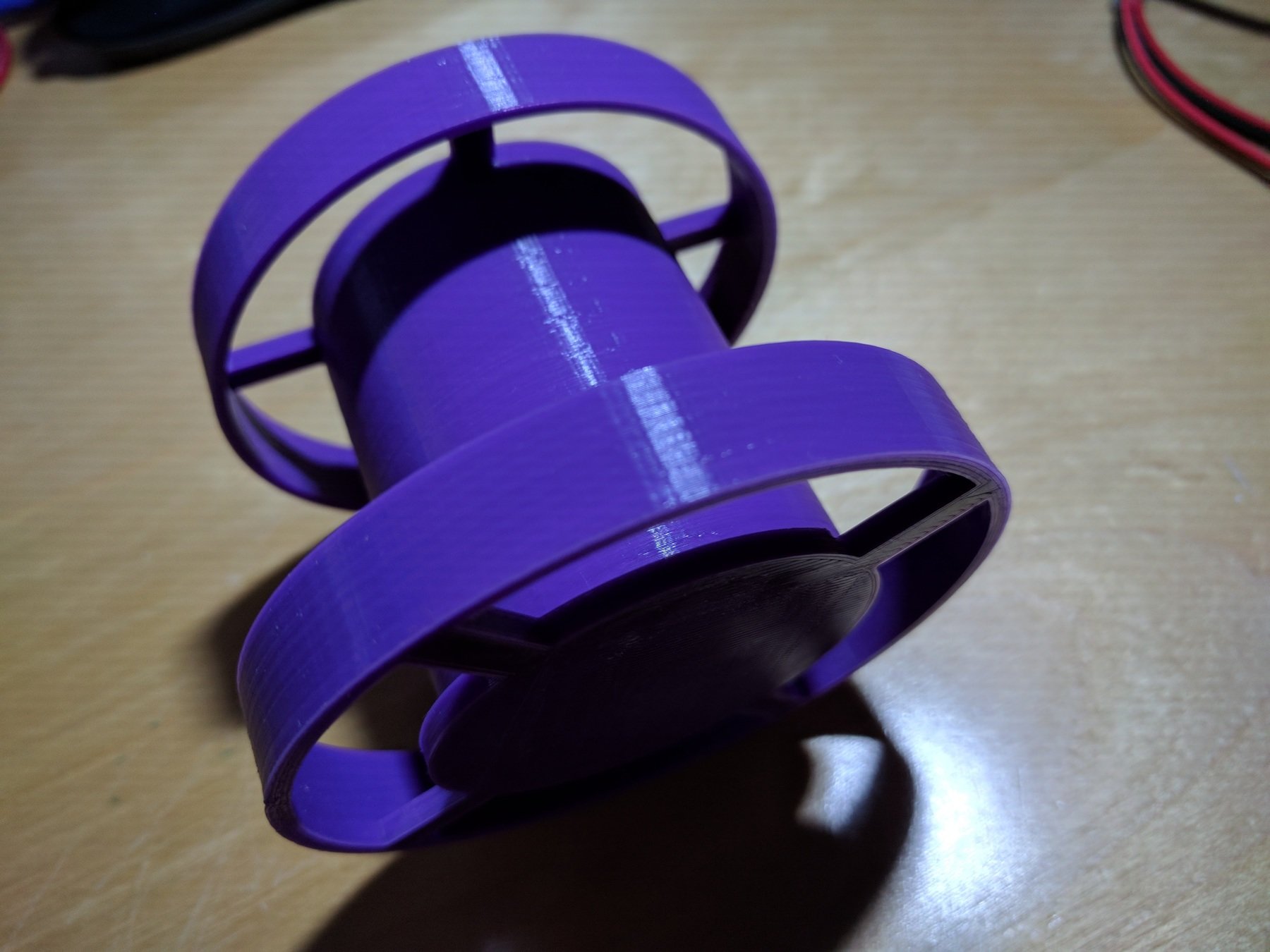

MATERIAL: cylinder+wheel

What can you do?

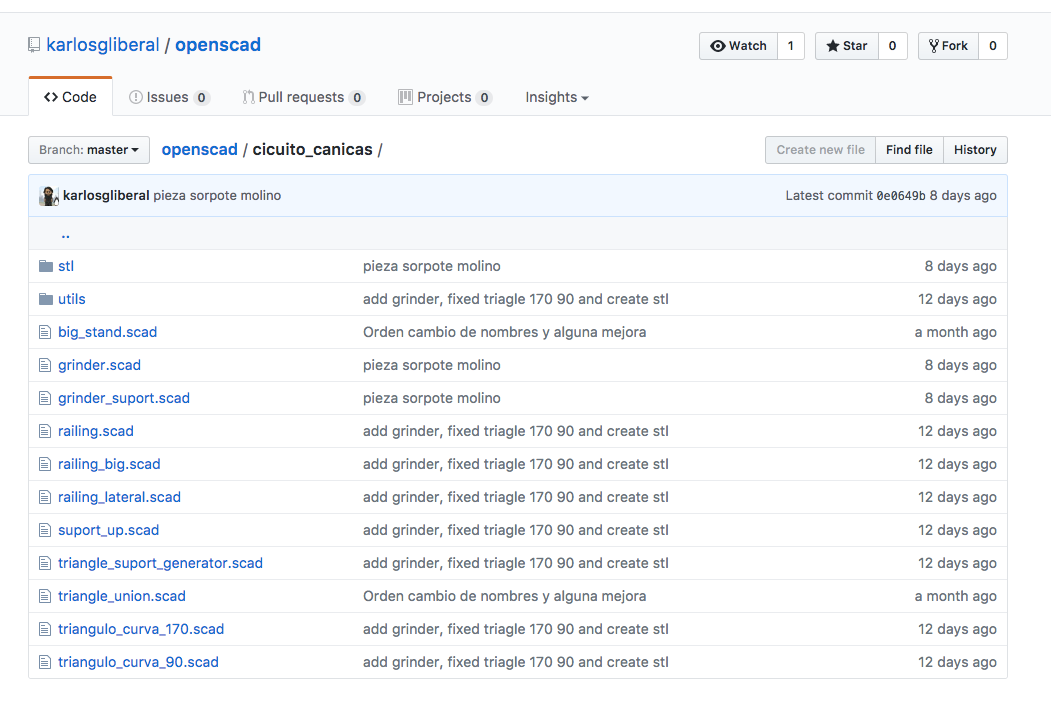

Github repository

Select the activity that you want to work with

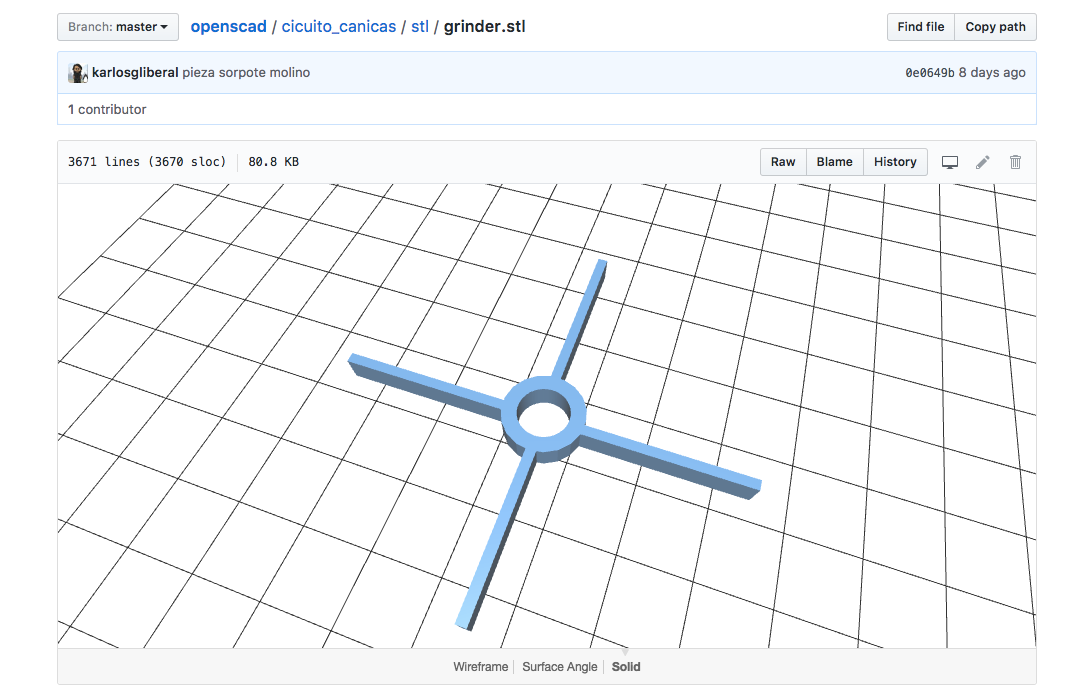

Stl files

You can preview each piece before to print

cura sTL

Open the file with cura stl

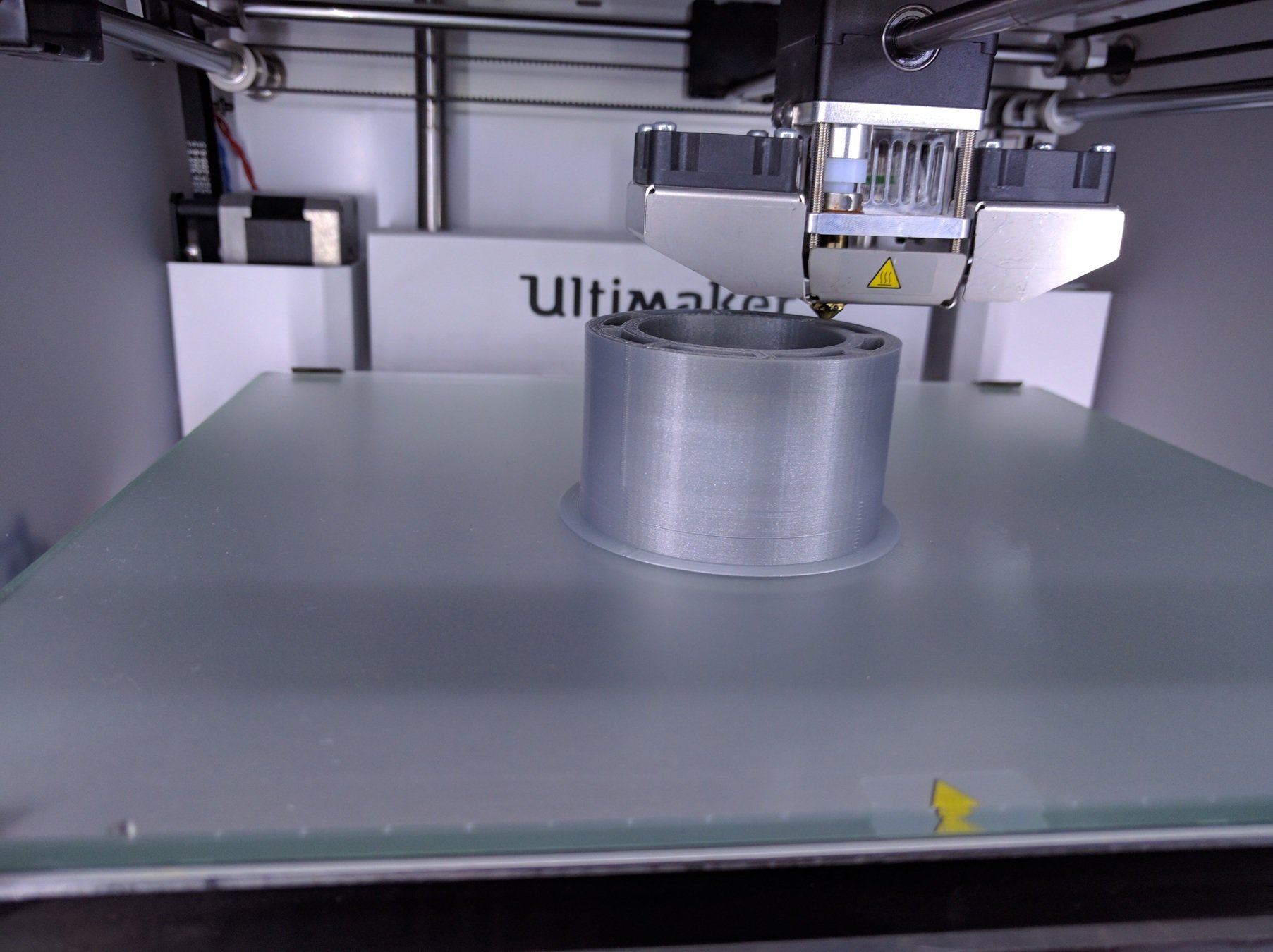

Print

Print the material

customize designs

questions?
